Consolidation Test Apparatus

quick overview :

Consolidation Test Apparatus

Single Gang

Three Gang

Six Gang

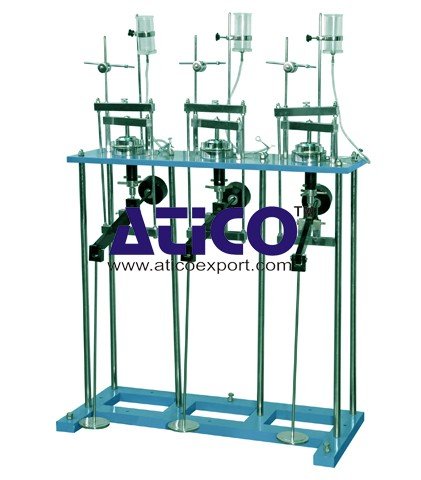

Consolidation Test Apparatus Consist Of Loading Unit, maximum capacity 20 kg/cm2 consisting of a loading yoke connected to a lever arm with a counter- balancing adjustment and having a lever ratio of 1:10, the whole assembly being mounted on a steel frame stand. Consolidation cell assembly, fixed ring type for testing 60 mm dia x 20 mm thick specimens comprising : 1. Fixed ring for specimens 60 mm dia x 20 mm thick with a guide ring. 2. Top porous stone for 60 mm dia specimen. 3. Bottom porous stone for 60 mm dia specimen. 4. Pressure pad, perforated 5. Channeled base with water inlet. 6. Gasket. 7. Flanged water jacket, 8. Set of weights to give a pressure of 10 kg/cm2 on 60 mm specimen. Comprising : 7 off 0.05 kg/cm2, 5 off 0.1 kg/cm2, 6 off 0.2 kg/cm2, 6 off 0.5 kg/cm2, and 5 off 1.0 kg/cm2. 9. Water reservoir with plastic tube, T-connection and pinch cock. 10. Dial gauge, 0.01 mm x 25 mm travel
